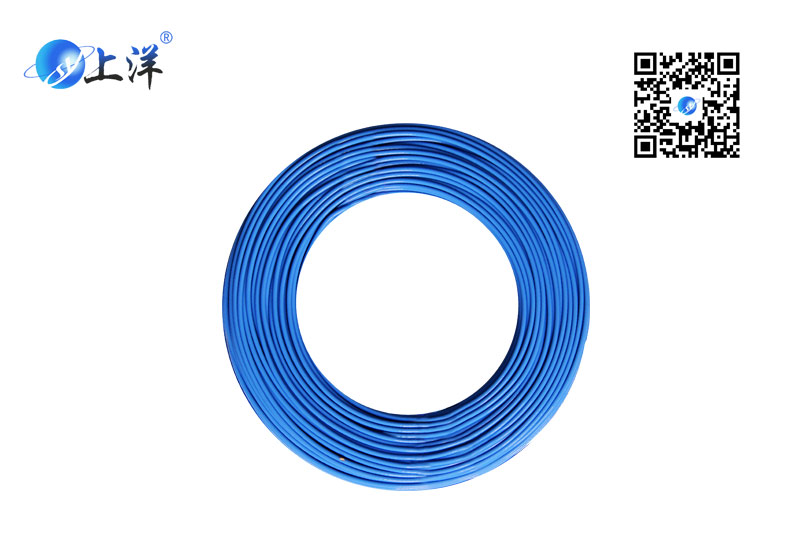

聚氯乙烯絕緣電線 UL2464

Home > Products >
聚氯乙烯絕緣電線 UL2464
Standard: ul7581581
Rated voltage: 300V, rated temperature: 80 ℃

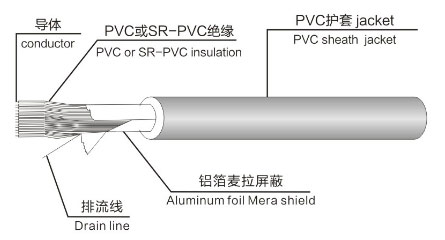

The conductor shall be stranded bare copper or tinned wire
PVC or semi-rigid PVC insulation
Aluminum foil Mylar tape shielding
Stranded tinned or bare copper wire drain line
Tinned or bare soft copper wire braided shield
PVC sheath
It can pass UL vw-1sc and CSA FT1 vertical fire resistance test
Application:
It is applicable to the computer wires conforming to the International Electrotechnical specification (EIA) RS-232 and CAD / CAM


導體

CONDUCTOR

絕緣

INSULATION

屏蔽

SHIELD

護套

JACKET

最大導

體電阻

MAX Resistance At20℃

最小絕

緣電阻

Min Insulation  Resistance

At20℃

耐電壓

Dielectric

Strength

AC 1 min



標準

長度

Standard length

規格

Spec

線數/線徑



直徑

DIA.



芯數

Cores

標稱

厚度

Nom.

Thick

標稱

外徑

Nom.

Dia

鋁箔

Al.

Mylar

編織

Braid

標稱

厚度

Nom.

Thick

標稱

外徑

Nom.

Dia

AWG

No./mm

mm

No.

mm

mm

mm*mm

No./No.

mm

mm

mm

Ω/km

MΩ/km

V

Ft(m)

28

7/0.127

0.38

3

0.25

0.88

A*B

16/4/0.12

0.80

4.20

223.75

10

1500

1000

(305)

4

16/4/0.12

4.40

5

16/5/0.12

4.60

6

16/5/0.12

4.90

7

16/5/0.12

4.90

8

16/6/0.12

5.20

656

(200)

9

16/6/0.12

5.50

10

16/7/0.12

5.80

11

16/7/0.12

5.90

12

16/7/0.12

5.90

13

16/8/0.12

6.20

14

16/8/0.12

6.20

15

16/9/0.12

6.40

25

24/7/0.12

8.00

492

(150)

37

24/8/0.12

1.00

8.80

50

24/9/0.12

10.00

26

7/0.16

0.48

3

0.25

0.98

A*B

16/5/0.12

0.80

4.40

139.73

10

1500

1000

(305)

4

16/5/0.12

4.70

5

16/5/0.12

5.00

656

(200)

6

16/6/0.12

5.30

7

16/6/0.12

5.30

8

16/6/0.12

5.60

9

16/6/0.12

6.00

10

16/6/0.12

6.30

11

16/6/0.12

6.40

12

16/6/0.12

6.40

13

16/7/0.12

6.70

14

16/7/0.12

6.70

15

16/7/0.12

7.00

25

24/8/0.12

8.80

492

(150)

37

24/9/0.12

1.00

9.70

50

24/11/0.12

11.00

24

11/0.16

0.61

2

0.25

1.11

A*B

16/5/0.12

0.80

4.50

93.30

10

1500

1000

(305

3

16/5/0.12

4.60

4

16/5/0.12

4.90

5

16/5/0.12

5.20

656

(200)

6

16/6/0.12

0.90

5.80

7

16/6/0.12

5.80

8

16/6/0.12

6.10

9

16/6/0.12

6.50

10

16/6/0.12

6.90

11

16/6/0.12

7.00

12

16/6/0.12

7.00

13

24/7/0.12

7.30

14

24/7/0.12

7.30

15

24/7/0.12

7.60

25

24/9/0.12

1.00

9.40

492

(150)

37

24/9/0.12

10.40

50

24/11/0.12

11.90

22

17/0.16

0.76

2

0.25

1.26

A*B

16/5/0.12

0.90

5.00

55.00

10

1500

656

(200)

3

16/5/0.12

5.30

4

16/5/0.12

5.60

5

16/5/0.12

6.00

6

16/6/0.12

1.00

6.60

7

16/6/0.12

6.60

8

16/6/0.12

7.00

9

16/6/0.12

7.50

10

16/6/0.12

7.90

11

16/7/0.12

8.00

492

(150)

12

16/7/0.12

8.00

13

24/7/0.12

8.40

14

24/7/0.12

8.40

15

24/7/0.12

8.80

25

24/9/0.12

1.10

10.90

37

24/9/0.12

12.00

50

24/11/0.12

13.80

注：

①A*B：厚度*寬度

②厚度：0.025、0.035（mm）

③寬度：8、10、12、18、20……(mm)
